CC450-AA ABSOLUTE ANALOG




GENERAL

AA = Absolute Analog

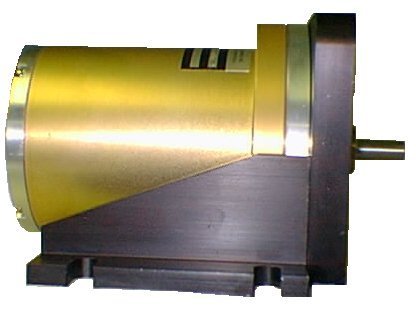

 The 450AA is a device that produces a voltage whose magnitude varies linearly with the angular position of its shaft. The device consists of a grey code position encoder disc, D/A converter and output buffers electronics to provide a 10VDC voltage or 4-20ma current output. The precision bearings, which support the operating shaft, are the only friction producing elements.

APPLICATIONS

Absolute Encoders are widely used for position measuring in Industry and Aerospace because of their ruggedness, accuracy and repeatability. The conversion circuitry is mounted within the transducer enclosure and is potted to provide for Mill Duty applications.

ELECTRICAL SPECIFICATIONS

Feedback Device AA = Absolute Analog
Power Supply Vin = 15Vin+/-10% at 100mA max
Voltage Output Vout = 0-10V Standard
Current Output Iout = 4-20 mA (optional)°, max
Resolution 12 bits (4096 steps)
Stability Direction Control Input TTL/CMOS (5V)° F

MECHANICAL SPECIFICATIONS


Housing NEMA 13

Material: 6061 Aluminum, Anodized

Seal: O-Ring

Shaft Size 0.4998" (+0.0000,-0.0005)
Shaft Seal Teflon Graphite
Moment of Inertia 1550g8cm22
Bearing Life 2x10 Revs at rated shaft loading
Shaft Torque 0.5 to 1.0 oz-in w/o seal
Shaft Runout 0.0005 T.I.R.
Speed 6,000 RPM, with shaft seal
Weight 12 lb.


ORDERING INFORMATION

CC450 = Basic (Mill Duty) Design

Example:

CC450-AA-

Vout- 90- 1:1- FM- C
1
2
3
4
5
6


1 = ANALOG SIGNAL OUTPUT

_____1 = Vout

_____2 = Iout

_____3 = Vout and Iout

2 = SHAFT ANGLE OUTPUT

_____1 = 90 degrees

_____2 = 180 degrees

_____3 = 360 degrees

_____4 = Programmable

3 = GEAR RATIO

Note: All gear trains are of anti-backlash design

_____X = Programmable

Gear-Down

_____2:1 to 10:1

_____10:1 to 40:1

_____40:1 to 100:1

Gear-Up

_____1:1 to 1:8

_____1:8 to 1:25

_____1:25 to 1:100

4 = MOUNTING

_____FM = Foot Mount

_____56C = NEMA 56C Flange

_____MM = Motor Mount (mounts directly to DC Kinamatic Motor)

5 = OUTPUT TERMINATION

_____MS = MS connector, with mate

_____C = Conduit, 1/2" NPT tapped hole

PRODUCT DIMENSIONS

Dimensions = Inches (mm)

  • Multiple mounting options available:
    Foot Mounts, Flange Mounts, Face Mounts, etc.
  • 5.70(145) O.D. max x 8.5(216) long w/o mounting options
