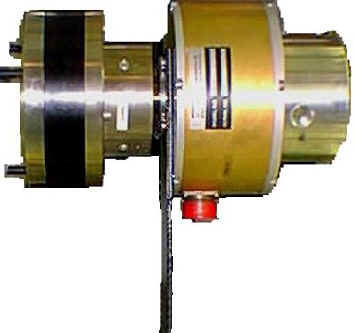

CC700 SHAFT-MOUNTED PULSE TACHOMETER |
 |
GENERAL CC700 is designed for any large system requiring precise speed control without sacrificing rapid response. The 700 Series Shaft-Mounted Pulse Tachometer is easy to install and designed for mill applications requiring a rugged tachometer. The CC700 is capable of operating in hostile environments, and is resistant to vibration, heat and water.
APPLICATIONS
|
ELECTRICAL SPECIFICATIONS
Code |
- Incremental, Optical |
|
Cycles per Revolution |
- on Code Disc: 60,240,540,600,1000, 1024,1200,1800, 2048,3600,4096, |
|
Supply Voltage |
- 12-15VDC +/-5%, |
|
Current |
- 200 mA Max |
|
Output Vol. (8830) |
- CMOS (HI-12V LO-0.2V) |
|
Output Sig. |
- Square Wave, including: - 2 Channels Phased 90o - Inverted Push-Pull Signal - Differentially Driven - In Quadrature, +/-2o - With Marker Pulse |
|
OA to OB Transition |
- 15% Minimum Separation |
|
Pulse to Pulse Acc. |
- +/-2 Minute of Arc (RMS) |
|
Pulse to Adj. Pulse |
- +/-0.5 Minute of ARC |
|
Temperature |
- Operating -40oC to 100oC |
|
Frequency Range |
- 0 to 100 KHz |
MECHANICAL SPECIFICATIONS
|
Mounting |
- On 20mm shaft, +/-0.01mm |
|
Housing |
- 6061 Machined Aluminum, Anodized |
|
Shaft |
- 303 Stainless Steel |
|
Shaft Rotation |
- No Backlash - Continuous & Reversible |
|
Slew Speed |
- 5000 RPM |
|
Moment of Inertia |
- 2500 g8cm2 |
|
Bearings |
- Class ABEC 7, T188 SS, Sealed with Grease |
|
Bearing Life |
- 2 x 1010 Revs. |
|
Cover |
- 6061 Extruded aluminum |
|
Output Termination |
- MS connector & Mate others available |
|
Shock |
- 50 G's for 11msec Duration |
|
Vibration |
- 5 to 2000 Hz @ 20 G's |
|
Weight |
- 15 lbs Typical |
HOW TO SPECIFY DIGITAL PULSE TACHOMETER Example:
CC700 = BASIC (Mill Duty) Design 1 = TACHOMETER TYPES ________TE = Super Tach with accuracy of 0.01% ________TER = Super Tach with accuracy of 0.01% and Resolver 2 = CYCLES PER REVOLUTION ________XXXX = Put in actual CPR needed 60, 240, 540, 600, 1000, 1024, 1200, 1800, 2048, 3600, 4096, 5000, 7200, 9000, 10,000 and others available 3 = OUTPUT SIGNAL ________ABZ = See Electrical Specifications 4 = SUPPLY VOLTAGE ________12 = +5 VDC to + 15 VDC ________24 = +15VDC to +30VDC 5 = OUTPUT TERMINATION ________MS = MS Connector with mate ________10A = HAN10A Connector with mate ________16A = HAN16A Connector with mate 6 = OPTIONS (Select one or more) ________OS = Hubbell overspeed switch The 2210 type C overspeed switch is directly coupled to the tach drive shaft ________2T = Second digital pulse tachometer A second independent tachometer is supplied for a backup tach or separate feedback path. ________3T or 4T = three or four independent tachometers ________PR = Pulse rate to analog output (Brushless DC tach) A DC output derived from the pulse encoder is available with a 0 to 10 V range. Linearity is 0.05%. ________TGH = Inland analog tachometer TGH 2900 Output: 138 V/1000 RPM - Direct drive, other drive outputs available; Ripple cycles/rev = 91 Minimum load 78 K _______JB = Junction box with terminal boards, MS mate with 6 feet of cable MOTOR AND MACHINE ADAPTERS ________CC700/API - Insulated Adapter Plate - Recommended for all main drive motor applications. ________CC700/IP - Interface Adapter Plate for mounting between motor or machine shaft and CC700/API ________CC700/TSA - Tapered Shaft Adapter for MD and MC motors. Nut for mounting the TSA to the motor shaft is included. Other mounting options, such as inside of brakes, and special applications are also available. Note: All mounting hardware for mounting to shaft is supplied unless otherwise specified. MOUNTING EQUIPMENT ________CC700/AF Alignment and Centering (C & A) Flange Patent No. 5,048,384 ________CC700/TA Torque Arm - provided with all sensors ________CC700/SB Stabilizer Bar with ball joint rod ends |
PRODUCT DIMENSIONS
Dimensions = Inches
(mm)
