CC600 DIGITAL PULSE TACHOMETER


GENERAL

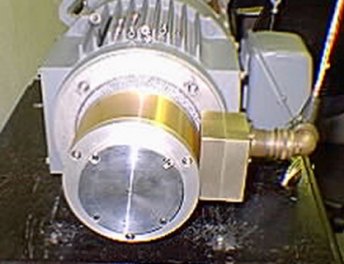

The CC600 pulse tachometer is a shaft mounted design for mill applications requiring a rugged, low cost and precision design.



APPLICATIONS

• No shaft coupling required
• Unlimited shaft end-float motion
• No alignment required when installing or replacing
• Higher accuracy feedback signal. No error signal introduced from coupling alignment errors

ELECTRICAL SPECIFICATIONS

Code

- Incremental, Optical

Cycles per Revolution

- Code Disc: 240, 540, 600, 1000, 1024, 1200, 2048

Supply Voltage

- 12-15 VDC +/-5% or 20-30 VDC +/-5%

Supply Current

- CMOS + 150 mA max, 125 mA, typical

Output Signal

- Square wave, with following: - 2 Channels, phased 90 o Inverted Push-Pull Signal - Differentially Driven - In Quadrature, +/-2 o - With Marker Pulse

Output Voltage

- CMOS (HI-12V, LO-0.2V) (HI-24V, LO-0.4V)

OA to OB Transition

- 15% Minimum Separation

Pulse to Any Pulse Accuracy

- +/-2 Minute of ARC (RMS)

Pulse to Adjacent Pulse

- +/-.5 Minute of ARC

Temperature

- Operating, -40 o C to 100 oC

Velocity Range

- 0 to 30,000 RPM

Speed Response

- Down to 0 RPM

Output Protection

- Short Circuit - Power Supply Reversal


MECHANICAL SPECIFICATIONS

Housing

- NEMA 13 - Material: 6061 Aluminum, Anodized - Seal: O-Ring

Fasteners

- 316 Stainless Steel

Shaft Size

- 30mm (1.1811")

Moment of Inertia

- 55 gm/cm 2

Bearing Life

- 2 x 10 8 revs at Rated Shaft Loading

Shaft Torque

- 0.5 to 1.0 oz.-in. Without Seal - 1.0 to 2.0 oz.-in. With Shaft Seal

Shock

- 50 G’s for 11msec Duration

Vibration

- 5 to 2000 Hz @ 20 G’s

Weight

- 5 lb.

Mounting Options

- Through Shaft Bolt or Pressure Clamp for various shaft diameters

HOW TO SPECIFY

DIGITAL PULSE TACHOMETER

Example:

CC600T

1024

1024

ABZ

12

MS

M1

1

2

3

4

5

6

7

 CC600 = BASIC (Mill Duty) Design

1 = TACHOMETER TYPES

________T = Standard Tach

2 = CYCLES PER REVOLUTION

________XXXX = Put in actual CPR needed

60(no marker), 240(no marker), 256, 500, 512, 540, 600, 1000, 1024, 1200, 2048

3 = 2T OPTION

________ Second Option independent input & output. Either same CPR as line #2 or other CPR of a lesser value. Consult with CCI when selecting a different CPR other than described in line #2

4 = OUTPUT SIGNAL

________ABZ = See Electrical Specifications

5 = SUPPLY VOLTAGE

________12 = +5 VDC to + 30 VDC

________24 = +20VDC to +30VDC

6 = OUTPUT TERMINATION

________MS = MS Connector with mate

7 = MOUNTING OPTIONS (Select one or more)

________M1 = 1.1245"/1.1250" dia shaft with 3/8" dia center tapped hole

________M2 = 2.1245"/2.1250" dia shaft with 1/2" dia center tapped hole

________M3 = 2.3745"/2.3750" dia shaft with 1/2" dia center tapped hole

________M4 = 2.8745"/2.8750" dia shaft with 5/8" dia center tapped hole

________M5 = 1.1245"/1.1250" dia shaft with 3/8" dia center tapped hole
Other shaft diameters and special mounting applications available

________C1 = 0.999"/1.000" dia shaft with pressure clamp mounting

PRODUCT DIMENSIONS

Dimensions = Inches (mm)

  • 5.9(150) O.D. x 4.85(123) long

  • direct shaft mount to various shaft diameters
