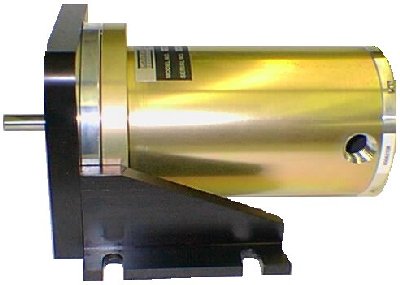

CC451-AE ABSOLUTE PROGRAMMABLE MULTI-TURN ENCODER


GENERAL

The maximum resolution per turn is 13 bits (8192 positions) at 8192 turns, standard coding for the output is Natural Binary or Gray Code. A reset input is provided to electronically set the position of zero. Information is formatted as serial (RS-232, RS-422, RS-485 or SSI) or as a parallel 24 bit word. The output can be customer programmed over the RS-232 port by using Hyperterminal under Windows 95 or 98 over an arbitrary number of turns (or fraction of turns and any number of counts per turn). In RS-485 mode, the encoder is addressable to allow operation of up to 32 units over a single I/O line.




ELECTRICAL SPECIFICATIONS

Code Gray Code or Natural Binary
Supply Voltage 5, 11-17, or 11-30VDC
Supply Current 150mA max
Output Format Parallel or Serial
Operating Temperature 0 to 70 C

MECHANICAL SPECIFICATIONS

Housing NEMA 13
Material - 6061  Aluminum, Anodized
Seal - O  Ring
Fasteners 316 Stainless Steel

Shaft Size

0.6250" (+.0000, -.0005)
303 Stainless Steel

3/16" Keyway
Shaft Seal Teflon Graphite
Moment of Inertia

1550g/ cm2

Bearing Life 2 x 108 revs at rated shaft loading

Shaft Torque

0.5 to 1.0 oz - in,  w/o seal
Shaft Runout 0.0005 T.I.R.
Speed 1500 RPM
Weight 12 lb.

ORDERING INFORMATION

How to build your CC451AE Model Number

EXAMPLE:

CC451AE - G - 4096 - 256 - S422 - 12 - FM - C
    1   2   3   4   5   6   7


MODEL = CC451AE   =   BASIC (Mill Duty) DESIGN

1 = ABSOLUTE ENCODER CONFIGURATION

_____G = Gray Code
         _____N = Natural Binary

Note:  All of these options are programmable and can be changed, reference "General" section at top.

2 = COUNTS PER TURN UP TO 8192

Note: All parameters are programmable and can be changed, reference "General" section at top

3 = NUMBER OF TURNS UP TO 8192
Note: All parameters are programmable and can be changed, reference "General" section at top.



4 = OUTPUTS
                       Serial Outputs

          _____S 232 =
RS - 232
          _____S 422 = RS - 422
          _____S 485 = RS - 485
          _____SSI = Synchronous Serial Interface
          _____SFO = Fiberoptic Data link Parallel
          _____PLD = 5V Differential Linedriver
          _____PSR = Parallel Source Driver
          _____PSK = Parallel Sink Driver


5 = POWER SUPPLY

          _____5 =
5 VDC Supply
          _____12 =
11-17 VDC Supply
          _____24 =
1
1- 30 VDC Supply


6
= MOUNTING

          _____FM =
Foot Mount

          _____56C = NEMA 56C Flange
          _____MM = Motor Mount NEMA 56C Motor Mount
          _____DS = Base Plate to replace DS3820 - together with  (Foot Mount) FM
          _____S = Base Plate to replace Selsyn - together with  (Foot Mount) FM
          _____46FM = Equivalent with BC46 & BC42 Foot Mounts and NEMA 56C Face Mount (MM)
          _____56FM = CC56FM Foot Mount
          _____FC = Motor Mount - Direct Mounting to 8.500" dia motor pilot with (4) 1/2-13  mounting holes on a 7.250" B.C., includes coupling kit.
          _____45P = CC45P Flange Mount
          _____45C = CC45C Flange Mount

Also available, various Adapter Plates for interfacing with existing devices.
For example: Selsyns, Limit Switches, etc..


7 = OUTPUT TERMINATION
         _____
MS = MS Connector, with mate
         _____C = Conduit, 1/2" NPT tapped hole
Note: CCI provides computer cable for programming sensor.

PRODUCT DIMENSIONS

Dimensions = Inches (mm)

  • Multiple mounting options available:
    Foot Mounts, Flange Mounts, Face Mounts, etc.
  • 5.70(145) O.D. max x 8.5(216) long w/o mounting options
