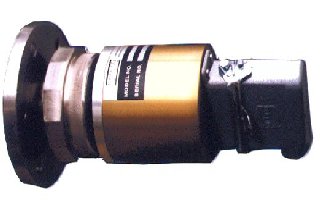

CC350T DIGITAL PULSE TACHOMETER



ELECTRICAL SPECIFICATIONS

Code

Incremental; Optical or Magnetic

Cycles per Revolution

Code Disc: 50, 96, 100, 200, 256, 360, 400, 500, 512, 1000, 1024, 2000, 2048

Supply Voltage

- 5 VDC to 30 VDC +/-5%

Supply Current

CMOS +150mA max, 125mA, typical

Output Signal

Square wave, with following:
   2 Channels, phased 90
Inverted Push-Pull Signal
   Differentially Driven
   In Quadrature, +/-2%
   With Marker Pulse

Output Voltage

- 5 VDC to 30 VDC +/-5%

OA to OB Transition

15% Minimum Separation

Pulse to Pulse Accuracy

+/-2 Minute of ARC (RMS)

Pulse to Adjacent Pulse

+/-.5 Minute of ARC

Temperature

Operating, -40oC to 100oC

Velocity Range

0 to 30,000 RPM

Speed Response

Down to 0 RPM

Output Protection

Short Circuit Power Supply Reversal


MECHANICAL SPECIFICATIONS

Housing

NEMA 13 Material: 6061 Anodized Aluminum  Seal: O-Ring

Fasteners

303 Stainless Steel

Shaft Size

0.6250" (+.0000,-.0005) 303 Stainless Steel

Moment of Inertia

55gm/cm2

Bearing Life

2 x 108 revs @ Rated Shaft Loading

Shaft Torque

0.5 to 1.0 oz.-in. Without Seal

Shaft Runout

1.0 to 2.0 oz.-in. With Shaft Seal

Shock

50 G's for 11msec Duration

Vibration

5 to 2000 Hz @ 20 G's

Weight

3 lb.

HOW TO SPECIFY

DIGITAL PULSE TACHOMETER

Example:

CC350T-

1024-

ABZ-

12-

SMR-

HAN

1

2

3

4

5

6


 1 = OUTPUT DESIGN
_____CC350T = Single shaft, end shaft mounting

2 = CYCLES PER REVOLUTION
_____XXXX = 50, 96, 100, 200, 256, 360, 400, 500, 512, 1000, 1024, 2000, 2048

3 = OUTPUT SIGNAL
_____ABZ = Two channels with marker pulse

4 = OUTPUT VOLTAGE
_____XX = +5 to +15 VDC, +12 VDC standard

5 = MOUNTING
_____See Mounting Specification Guide

6 = OUTPUT TERMINATION
_____MSS = MS (sealed) connector with mate
_____HAN = Cam-lever hood connector

MOUNTING SPECIFICATION GUIDE

This guide contains all mounting options currently available for models CC290, CC350, CC3820, CC450

DS = Base plate to replace GE - DS3820

FC = "FC" flange mount (per GEP-387J, Option item 1) Mounts directly to DC Kinamatic Motor that has an "Accessory mounting face" per GEP-387J, Option 1; Specify frame size; Flex coupling and stub shaft adapter included

450FM = Standard Carlen Controls Foot Mount

46FM = Foot Mount to match BC46

56FM = Foot Mount to match Avtron M785 and Lakeshore RIM 6200

MM = NEMA 56C Motor Mount (GEP-387J)

56C = NEMA 56C Flange Mount

S = Base plate to replace Selsyn

SMR = Shaft mounting receptacle (Patent pending), no coupling required; includes MM, torque arm support and stabilizer bar



PRODUCT DIMENSIONS

Dimensions = Inches (mm)

  • 3.5(90) O.D. x 7.15(182) long with mating connector
  • Multiple mounting options available
    Foot Mounts, Flange Mounts, Face Mounts, etc.
