GENERAL

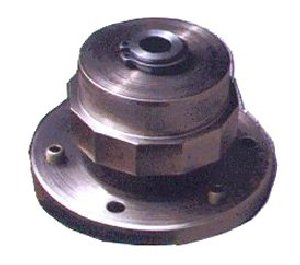

The 350SMR shaft mounting receptacle is used to mount any rotary transducer to a machine or motor shaft without the use of a coupling.

APPLICATIONS

Advantages include: accuracy of alignment, ease of installation, quick spare substitution and total elimination of shim stock and alignment adjustments when installing a foot-mounted device on a pedestal. An anti-rotation tie rod assembly is supplied for mounting on the transducer. Adapter plates are available for mounting to the pilots, counter bores and bolt circles of existing shafts.
