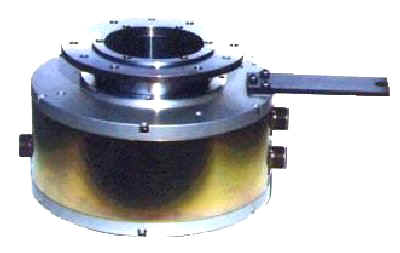

CC1200 DIGITAL PULSE TACHOMETER   4



APPLICATION

For use with drive motors requiring a hollow shaft for the passage of fluids to the drive load. The CC1200 pulse tachometer can be directly mounted to the motor shaft allowing passage to the motor hollow shaft thru the tachometer hollow shaft.

FEATURES
  • Hollow shaft bores up to 6 inches
  • Mounting flange with pilot for accurate centering of the pulse tachometer
  • Multiple functions in a single housing:
    •   -Up to four isolated tachometer outputs
    •   -Single turn resolver for vector control



ELECTRICAL SPECIFICATIONS

Code

- Incremental, Optical

Cycles per Revolution

- on Code Disc: 5000ppr

Supply Voltage

- 5 VDC to 30 VDC +/-5%
Current

- 200 mA Max

Output Voltage

- 5 VDC to 30 VDC +/-5%

Output Signal

- Square Wave, including:
     - 2 Channels, phased 90o
     - Inverted Push-Pull Signal
     - Differentially Driven
               - In Quadrature, +/-2o
               - With Marker Pulse

OA to OB Transition

- 15% Minimum Separation

Pulse to Pulse Accuracy

- +/-2 Minute of ARC (RMS)

Pulse to Adjacent Pulse

- +/-0.5 Minute of ARC

Temperature

- Operating 0oC to 70oC

Frequency Range

- 0 to 100 KHz

PRODUCT DIMENSIONS

Dimensions = Inches (mm)
  • O.D. = 12.9 (328) with 5.25(133) through bore length 9.43(240)
